Spade terminal manufacturer

Heure de publication: Auteur: Editeur du site Visite: 733

manufacturer Information

YUEQING DALIER ELECTRICAL FACTORY is specialized in designing and developing wiring terminals and connector, cable lugs, contactors and thermal relay with excellent experience to manufacture such products.

Our products are widely used in electronic, machinery, instrument, electrical appliances complete, and other industrial fields, terminal products are exported to USA, South American, Southeast Asia…, Obtained approval and the high praise from the domestic and foreign customers.

Our company is located in Liushi town that transportation is convenient, close to the beautiful scenery of the national tourism resort - the Yan Dang mountain, and Facing the hills to the open port city - Wenzhou ; Near Wenzhou airport, railway stations, with beautiful environment and convenient transportation.

We are producing strictly reference to the technical standard advanced industrial and examined by the national electrical control and distribution equipment quality supervision testing center. It possessing first-class equipment and developing engineers, products are made that use the high purity material. The contacts series are complete, numerous in varieties, that are welcome to many clients for its excellent quality and favorable price!

TEL:+008613757750709

FAX:86-577-62766133


                                  Spade terminal

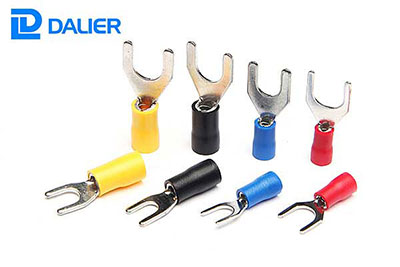

Spade terminal manufacturer_Spade terminal

Cable size: 0.5~1.5mm²(A.W.G.22-16)

Max current: Imax=19A

Material: purple copper Thickness:0.7mm

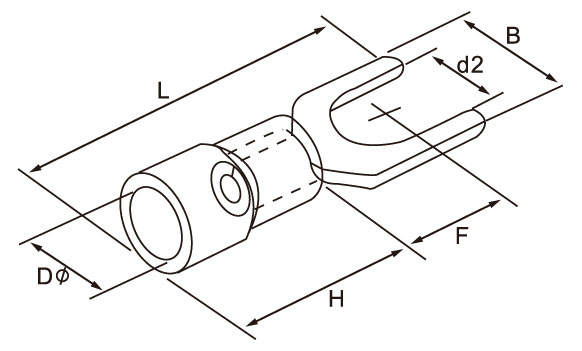

Spade terminal manufacturer_Spade terminal drawing

Item No. American Bolt number Dimension(mm)           Color
    Screw dia. B L F H D
    d2
SV1.25-3 #4 3.2 5.7 21.6 6.5 10 4.3 Red
SVS1.25-3.5 #6 3.7 5.7 21.6 6.5
SVL1.25-3.5 #6 3.7 6.4 21.2 6.5
SVS1.25-4 #8 4.3 8 21.2 6.5
SVM1.25-4 #8 4.3 7.2 21.2 6.5
SVL1.25-4 #8 4.3 8.1 21.2 6.5
SVS1.25-5 #10 5.3 8.1 21.2 6.5
SVL1.25-5 #10 5.3 9.5 21.2 6.5
SVS1.25-6 43469 6.4 9.5 21.2 6.5
SVL1.25-6 43469 6.4 12 27.2 11



                     Insulated twin cord end terminal

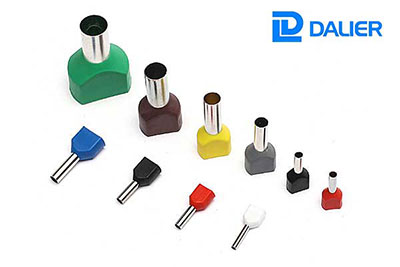

Spade terminal manufacturer_Insulated twin cord end terminal

Max voltage: 105°C

Ui=300V

Material: purple copper

Insulating material: Nylon

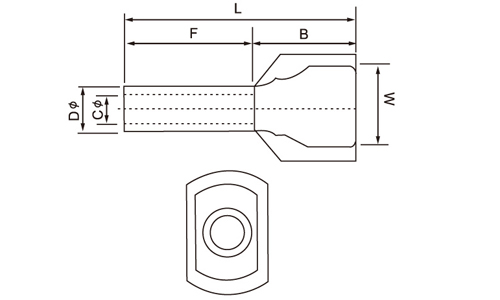

Spade terminal manufacturer_Insulated twin cord end terminal drawing

Item No. Conductor Dimension           color of Insulating
  (mm²) F(mm) L(mm) W(mm) B(mm) D (mm) C (mm) German French
TE0508 2×0.5 8.0  14.0  5.0  6.0  1.8  1.5  White White
TE7508 2×0.75 8.0  14.5  5.5  6.5  2.1  1.8  Blue Gray
TE7510 2×0.75 10.0  16.5  5.5  6.5  2.1  1.8
TE1008 2×1.0 8.0  14.9  5.5  6.9  2.3  2.0  Red Red
TE1010 2×1.0 10.0  16.9  5.5  6.9  2.3  2.0
TE1508 2×1.5 8.0  16.7  6.7  8.7  2.6  2.3  Black Blue
TE1512 2×1.5 12.0  20.7  6.7  8.7  2.6  2.3
TE2510 2×2.5 10.0  19.8  8.0  9.8  3.3  2.9  Gray Blue
TE2513 2×2.5 13.0  22.8  8.0  9.8  3.3  2.9
TE4012 2×4.0 12.0  21.2  8.8  9.2  4.2  3.8  Orange Gray
TE6014 2×6.0 14.0  23.5  9.5  9.5  5.3  4.9  Green Yellow
TE10-14 2×10.0 14.0  26.5  12.6  12.5  6.9  6.5  Brown Red
TE16-14 2×16.0 14.0  30.0  19.0  16.0  8.7  8.3  Ivory Blue
