piggy-back disconnector supplier

Heure de publication: Auteur: Editeur du site Visite: 644

YUEQING DALIER ELECTRICAL FACTORY  is specialized in designing and developing wiring terminals and connector, cable lugs, contactors and thermal relay with excellent experience to manufacture such products.

Our products are widely used in electronic, machinery, instrument, electrical appliances complete, and other industrial fields, terminal products are exported to USA, South American, Southeast Asia…, Obtained approval and the high praise from the domestic and foreign customers.

Our company is located in Liushi town that transportation is convenient, close to the beautiful scenery of the national tourism resort - the Yan Dang mountain, and Facing the hills to the open port city - Wenzhou ; Near Wenzhou airport, railway stations, with beautiful environment and convenient transportation.

TEL:+008613757750709

FAX:86-577-62766133



product description

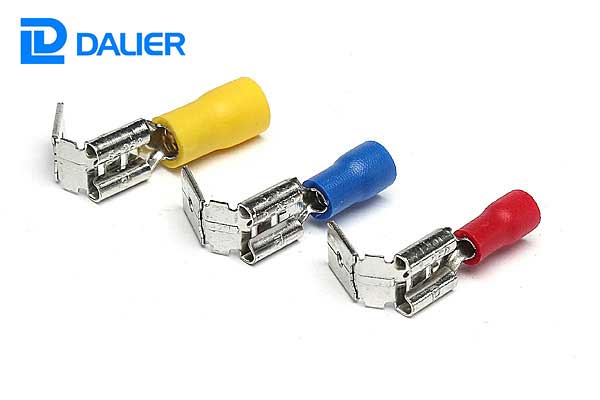

Vinyl-Insulated piggy-back disconnector PBDD

piggy-back disconnector supplier_piggy-back disconnector

  • Cable size: 0.5~1.5mm²(A.W.G.22~16)
  • Max current: Imax=10A
  • Material: brass

Technical Specification

Item No. Thickness of material Dimension(mm)
  (mm) B B1 H D
PBDD1.25-250 0.8×6.35 7.4 6.3 10.6 3.8 1.7

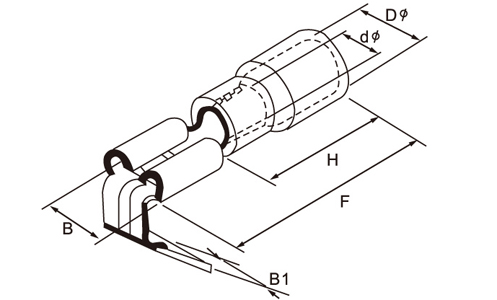

Outline

piggy-back disconnector supplier_piggy-back disconnector drawing

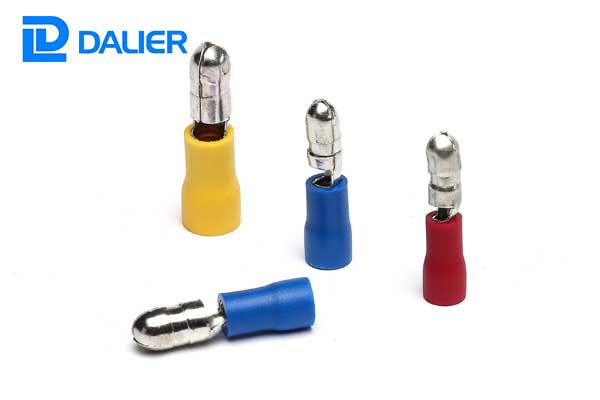

Vinyl-Insulated Bullet disconnector MPD

piggy-back disconnector supplier_Bullet disconnector

  • Cable size: 0.5~1.5mm²(A.W.G.22~16)
  • Max current: Imax=10A
  • Material: brass

Technical Specifications

Item No. Thickness of material Dimension(mm)
  (mm) F H L
MPD1.25-156 0.4 4 10.6 1.7 10.6 21.2

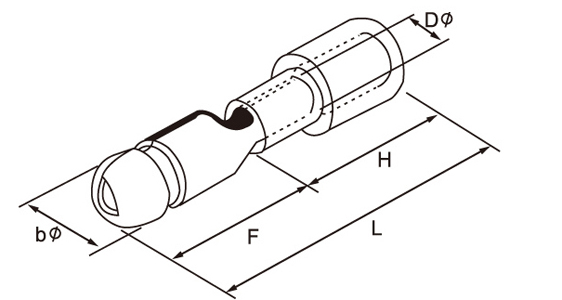

Outline

piggy-back disconnector supplier_Bullet disconnector drawing
