Non-insulated Spade terminal SNB

Non-insulated Spade terminal supplier_Non-insulated Spade terminal

Cable size: 0.5~1.5mm²(A.W.G.22-16)
Max current: Imax=19A
Material: purple copper T
hickness: 0.7mm

Technical Specification:

Type American Bolts number d2Φ(mm) B(mm) L(mm) F(mm) E(mm) DΦ(mm) dφ(mm)
SNB 1.25-3 #4 3.2 5.7 16 6.5 4.8 3.4 1.7
SNBS1.25-3.5 #6 3.7 5.7 16 6.5
SNBL1.25-3.5 #6 3.7 6.4 15.5 6.5
SNBS1.25-4 #8 4.3 6.4 15.5 6.5
SNBM1.25-4 #8 4.3 7.2 15.5 6.5
SNBL1.25-4 #8 4.3 8.1 15.5 6.5
SNBS1.25-5 #10 5.3 8.1 15.5 6.5
SNBL1.25-5 #10 5.3 9.5 15.5 6.5
SNBS1.25-6 43469 6.4 9.5 15.5 6.5
SNBL1.25-6 43469 6.4 12 22 11

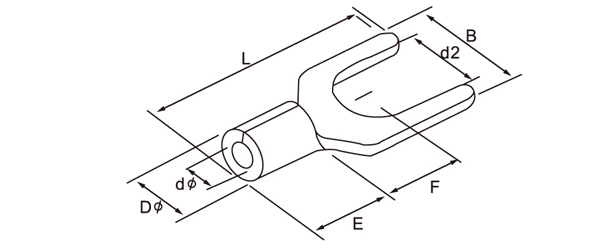

Outline:

Non-insulated Spade terminal supplier_Non-insulated Spade terminal drawing

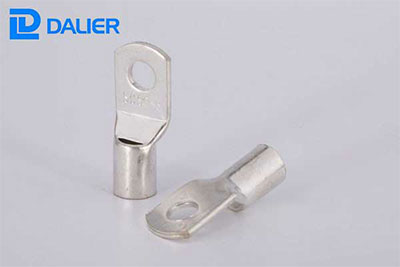

Copper Tube Lug(SC)

Non-insulated Spade terminal supplier_Copper Tube Lug(SC)

Technical Specification:

ITEM NO. D2φ(mm) Dimensions(mm)       Conductor section(mm²)
    L1 L
SC1.5-5 5.3 1.9 3.35 6.5 18.0  1.5
SC2.5-4 4.3 2.6 4.0  7.0  18.0  2.5
SC2.5-5 5.3 2.6 4.0  7.0  20.0  2.5
SC4-5 5.3 3.2 4.8 7.5 20.5  4
SC4-6 6.4 3.2 4.8 7.5 22.0  4
SC6-5 5.3 4.1 5.5 9.0  23.0  6
SC6-6 6.4 4.1 5.5 9.0  23.0  6
SC10-6 6.4 5.1 6.5 9.5 25.0  10
SC10-8 8.4 5.1 6.5 9.5 27.0  10
SC16-6 6.4 6.4 8.0  12.2 30.7  16
SC16-8 8.4 6.4 8.0  12.2 30.7  16
SC25-6 6.4 7.4 9.0  13.3 34.0  25
SC25-8 8.4 7.4 9.0  13.3 34.0  25
SC35-8 8.4 8.5 10.5 14.5 38.0  35
SC35-10 10.5 8.5 10.5 14.5 38.0  35
SC50-8 8.4 9.6 12.0  16.5 42.5  50
SC50-10 10.5 9.6 12.0  16.5 42.5  50
SC70-10 10.5 11.9 14.5 19.0  50.0  70
SC70-12 13 11.9 14.5 19.0  50.0  70
SC95-10 10.5 13.2 16.0  20.3 56.5  95
SC95-12 13 13.2 16.0  20.3 56.5  95
SC120-12 13 15.6 19.0  24.5 64.0  120
SC120-16 17 15.6 19.0  24.5 64.0  120
SC150-12 13 17.4 21.0  29.0  69.0  150
SC150-16 17 17.4 21.0  29.0  69.0  150
SC185-12 13 19 23.0  32.0  72.0  185
SC185-16 17 19 23.0  32.0  72.0  185
SC240-16 17 21.8 26.0  38.0  92.0  240
SC240-20 21 21.8 26.0  38.0  92.0  240
SC300-16 17 24.8 30.0  43.0  101.0  300
SC300-20 21 24.8 30.0  43.0  101.0  300
SC400-16 17 28 34.0  46.0  110.0  400
SC400-20 21 28 34.0  46.0  110.0  400
SC500-16 17 30 38.0  47.0  119.0  500
SC500-20 21 30 38.0  47.0  119.0  500
SC630-20 21 35 45.0  56.0  135.0  630
SC800-22   39 50.0  60.0  170.0  800
SC1000-22   44 56.0  87.0  200.0  1000

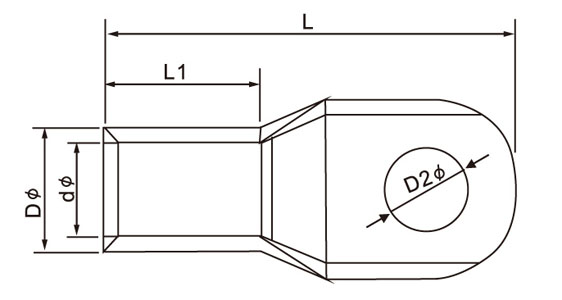

Outline:

Non-insulated Spade terminal supplier_Copper Tube Lug(SC)  Drawing
