Description du produit
OREILLE LONGUE BARREL COPPER LUG
Listé UL par 486A jusqu'à 35KV
Idéal pour les applications industrielles, pétrolières, minières, de soudage et de terminaison de transport.
Conception robuste qui permet un sertissage supplémentaire pour une résistance mécanique accrue.

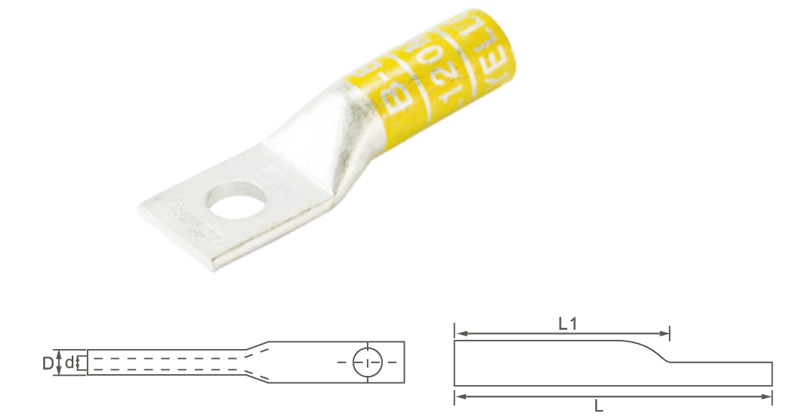

ITEM NO. | Dimensions(mm) | Color | A.W.G. | |||
dφ | DΦ | L1 | L | |||
L10M6 | 5 | 7 | 38.7 | 22 | Red | 8 |
L16M6 | 4.8 | 7.5 | 53.5 | 36.5 | Blue | 6 |
L25M6 | 6 | 8.7 | 52.5 | 35.0 | Gray | 4 |
L35M8 | 7.5 | 10.5 | 52.5 | 33.0 | Brown | 2 |
L50M8 | 10 | 13 | 62 | 42.5 | Pink | 1/0 |
L70M10 | 11 | 14.5 | 69.5 | 47.5 | Black | 2/0 |
L95M12 | 13.5 | 17.5 | 85.0 | 53.0 | Purple | 4/0 |
L120M12 | 15 | 19 | 85.0 | 55.0 | Yellow | 250KCMIL |
L150M12 | 18.5 | 22 | 94.5 | 67.0 | Red | 350KCMIL |
L185M16 | 19 | 24 | 154 | 75.5 | Blue | 400KCMIL |
L240M16 | 21 | 27 | 116 | 78.0 | Brown | 500KCMIL |
L300M16 | 22.5 | 29.0 | 125.0 | 91.8 | 600KCMIL | |
L400M16 | 26 | 33 | 135 | 95.0 | Green | 750KCMIL |
L500M16 | 30 | 38 | 143 | 102.0 | Black | 1000KCMIL |
Cosse en cuivre à un trou à long canon Cosse de câble
