receptacle disconnector supplier

Heure de publication: 2019-10-08 12:00 Auteur: Editeur du site Visite: 633

Company Profile

YUEQING DALIER ELECTRICAL FACTORY is specialized in designing and developing wiring terminals and connector, cable lugs, contactors and thermal relay with excellent experience to manufacture such products.

Our products are widely used in electronic, machinery, instrument, electrical appliances complete, and other industrial fields, terminal products are exported to USA, South American, Southeast Asia…, Obtained approval and the high praise from the domestic and foreign customers.

TEL:+008613757750709

FAX:86-577-62766133

product description

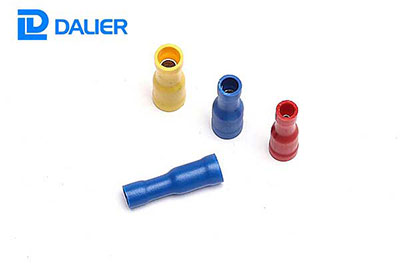

Vinyl fully Insulated receptacle disconnector FRD

Cable size: 0.5~1.5mm²(A.W.G.22~16)
Max current: Imax=10A
Material: brass

Technical Specification

Item No.	Thickness of material	Dimension (mm)
	(mm)	b	B	D	F	L
FRD1.25-156	0.4	4	6.3	1.7	13	24.5

Outline

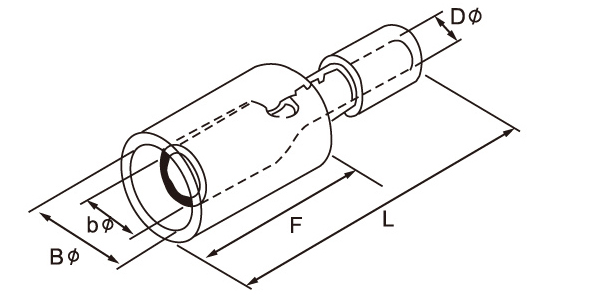

receptacle disconnector supplier_receptacle disconnector FRD Drawing

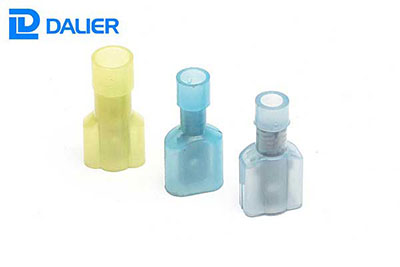

Male and female full-insulating joint(Nylon)

Max current: Imax=10A
Meterial: Brass
Insulated Cover Material: Nylon

Technical Specification

ITEM.NO.	Specification	Dimension (mm)							Fig	A.W.G	Color
		W	F	L	B	DØ	CØ	T		mm2
FDFN 1.25-250	0.8 x 6.35	6.6	7.3	22	11	4	1.7	0.4	1	22-16A.W.G	Red
MDFN 1.25-250		6.35	7.7	23					2	0.5-1.5mm2

Outline

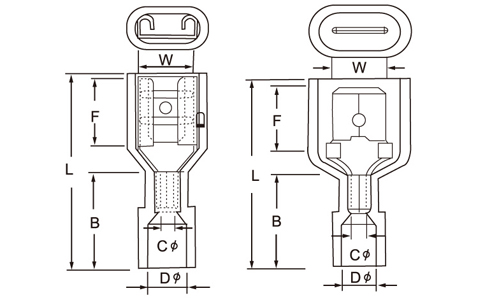

receptacle disconnector supplier_Male and female full-insulating joint drawing
