Blade Terminal Supplier

Heure de publication: Auteur: Editeur du site Visite: 689

YUEQING DALIER ELECTRICAL FACTORY  is specialized in designing and developing wiring terminals and connector, cable lugs, contactors and thermal relay with excellent experience to manufacture such products.

Our products are widely used in electronic, machinery, instrument, electrical appliances complete, and other industrial fields, terminal products are exported to USA, South American, Southeast Asia…, Obtained approval and the high praise from the domestic and foreign customers.

We are producing strictly reference to the technical standard advanced industrial and examined by the national electrical control and distribution equipment quality supervision testing center. It possessing first-class equipment and developing engineers, products are made that use the high purity material. The contacts series are complete, numerous in varieties, that are welcome to many clients for its excellent quality and favorable price!

TEL:+008613757750709

FAX:86-577-62766133




product description

Blade terminal

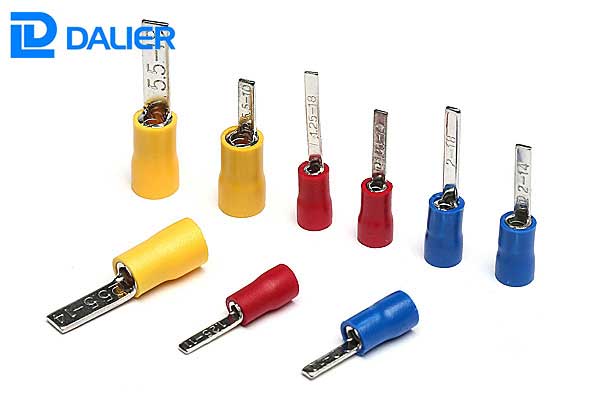

Blade Terminal Supplier_Blade terminal

Cable size: 0.5~1.5mm²(A.W.G.22~16)

Max current: Imax=19A

Material: purple copper

Thickness: 0.7mm

Item No. Dimension
  B(mm) L(mm) Fmm)   H(mm) D (mm)
DBV1.25-10 2.3 20.6 10   10.6 4.3
DBV1.25-11 2.3 21.6 11
DBV1.25-14 2.3 24.6 14
DBV1.25-18 2.3 28.6 18

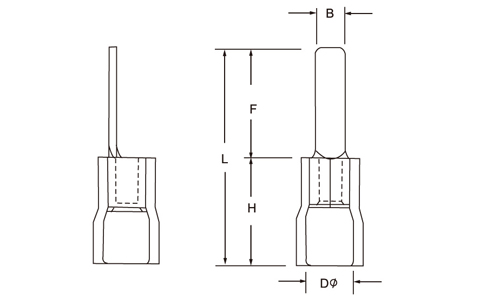

Blade Terminal Supplier_Blade terminal drawing






Butt splice terminal

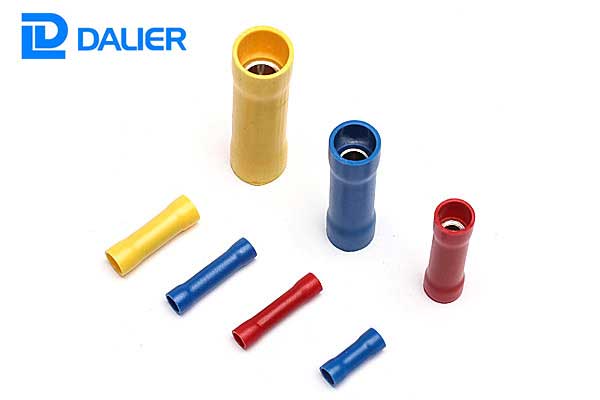

Blade Terminal Supplier_Butt splice terminal

Material: purple copper

Insulating material: PVC

Item No. Cable size   Dimension
  A.W.G mm² I(mm) d (mm) L(mm)
BV1.25 22-16 0.5-1.5 15 1.7 25
BV2 16-14 1.5-2.5 15 2.3 25
BV5.5 12-10 4-6 15 3.4 25
BV8 #8 6-10 21 4.5 32
BV14 #6 10-16 26 5.8 42
BV22 #4 16-25 29 7.7 50
BV38 #2 35-50 32 9.4 55

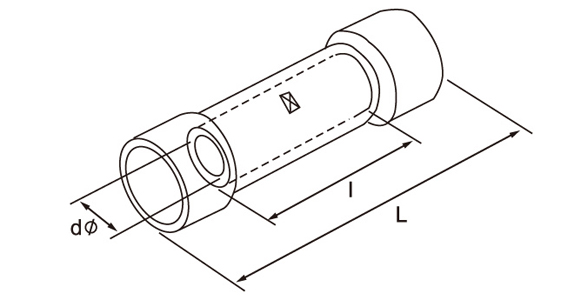

Blade Terminal Supplier_Butt splice terminal drawing
